Double Convex Lens for Laser Systems – Customizable High-Precision Optics

  Key Features

     • Material Options:               N-BK7, Fused Silica, ZnSe (UV to IR compatibility).

     • High Damage Threshold:   AR/HR coatings available for high-power lasers (e.g., CO₂, Nd:YAG).

     • Customization:                    Focal length (10–500 mm), diameter (5–100 mm), and coatings tailored to your specifications.

     • Low Insertion Loss:             <0.2 dB for fiber coupling applications.

  Technical  Specifications

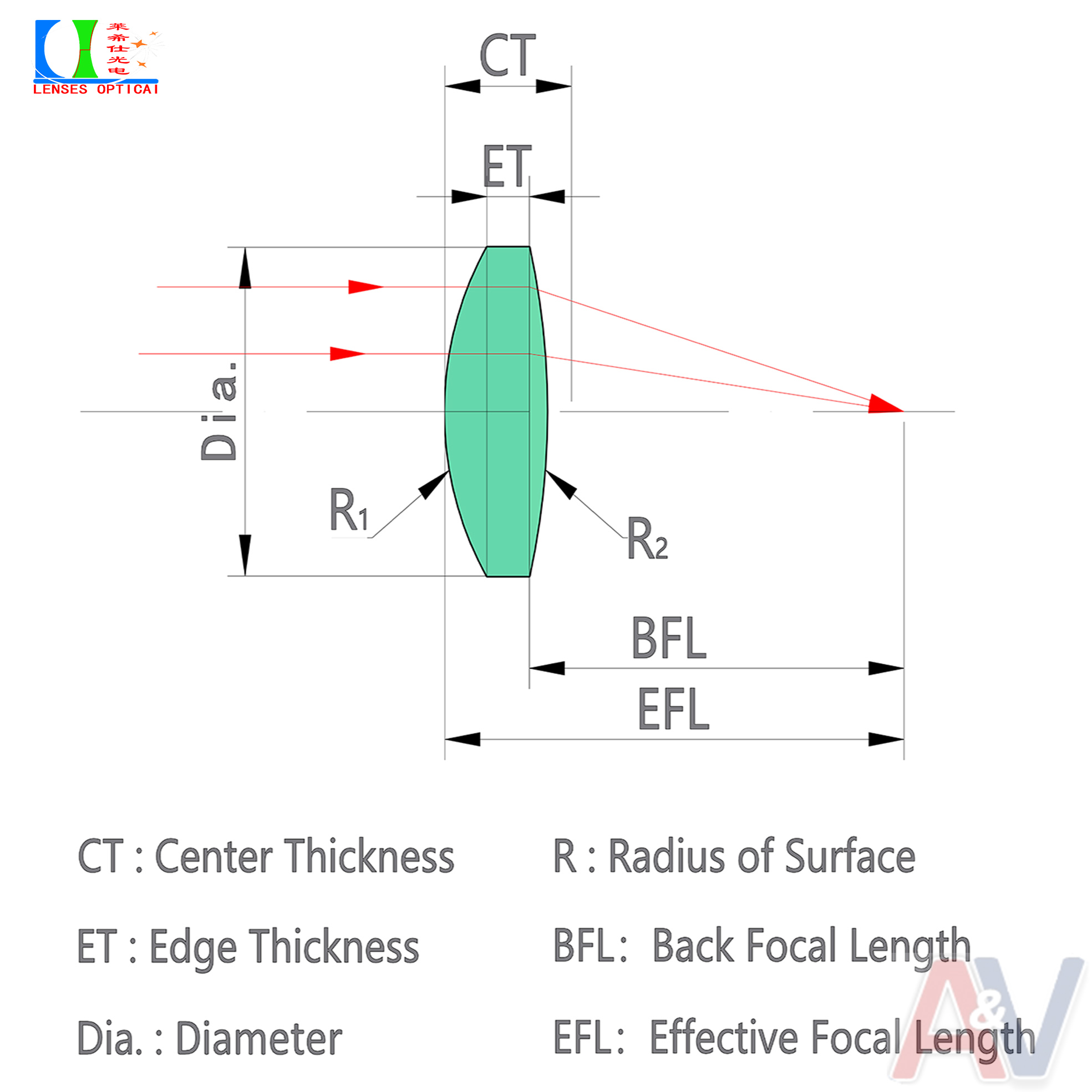

   Bi-convex lens structure

Parameter                          Details

Material Science               BK7, quartz, sapphire, kinds of optical glass

Focal length error             ±1%

Diameter tolerance           +0/-0.1mm

Central thickness               ±0.1mm

Center deviation                2’

 Aperture                             N=1-5

 Surface quality                   40/20 or higher

 Wavelength Range            193 nm (UV) – 10.6 μm (IR)

 Surface Accuracy              <λ/2 @632.8 nm

 Coating Options                AR (Anti-Reflective), HR (High-Reflective)

 Clear aperture             90%

 Applications in Laser Technology

    • Laser Beam Expansion:   Uniform energy distribution for LiDAR and interferometry.

    • Precision Imaging:           Focus polychromatic sources in medical imaging and spectroscopy.

    • Fiber-Optic Systems:        Efficient laser-to-fiber coupling with minimal loss.

    • R&D Laboratories:           Nonlinear optics, plasma research, and ultrafast laser setups.

 Why Choose Us?

✅ 20+ Years of Expertise: Specialized in laser optics manufacturing.
✅ OEM/ODM Support: Full customization for material, size, and coatings.
✅ Quality Assurance: 100% inspection with interferometry and spectrophotometry.
✅ Fast Lead Time: 2–4 weeks for standard orders; urgent requests accepted.

Packaging & Delivery

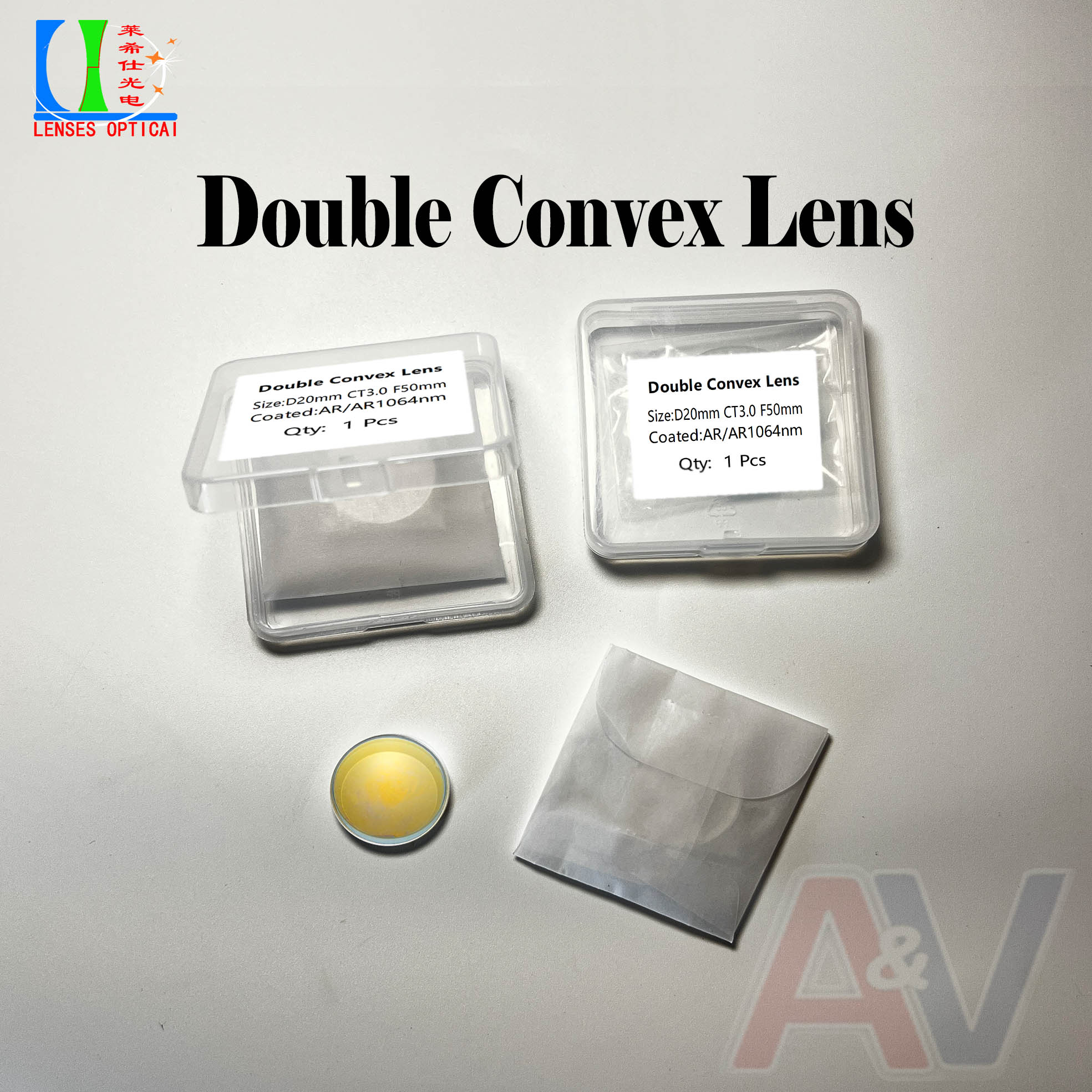

• Packaging:  Anti-static sealed containers in foam-lined boxes.

• Shipping:    Global logistics via DHL, FedEx, or sea freight.

 Request a Free Sample or Custom Quote Today!

[Click to Contact Supplier] | [Download Product Catalog]

LENSES-OPTICAL – Your Trusted Partner for Precision Laser Solutions. Certifications: ISO9001, CE, RoHS.

 FAQ

     Q: Can you provide lenses for ultrafast laser systems?
     A: Yes. Our fused silica lenses with λ/4 surface accuracy are ideal for femtosecond lasers.

     Q: Do you offer small-batch orders?
      A: Absolutely. Prototype orders start from 10 units.

     Q: What is the typical lead time?
      A: Standard orders ship within 15 working days. Expedited options available.

Customize Your Optics – Boost Your Laser System’s Performance!
