Laser System Key Components
✅ Laser Beam Expansion; Enhances spot size and energy density uniformity; LiDAR systems
✅ Beam Shaping; Eliminates high-order aberrations, optimizes pulse profiles; Ultrafast laser processing equipment
✅ Laser Ranging; Controls divergence angle for long-range detection; Autonomous vehicle obstacle recognition
✅ Fiber Coupling; Low insertion loss (<0.3 dB); Optical communication transceiver modules
| Some commonly - used specifications | ||||

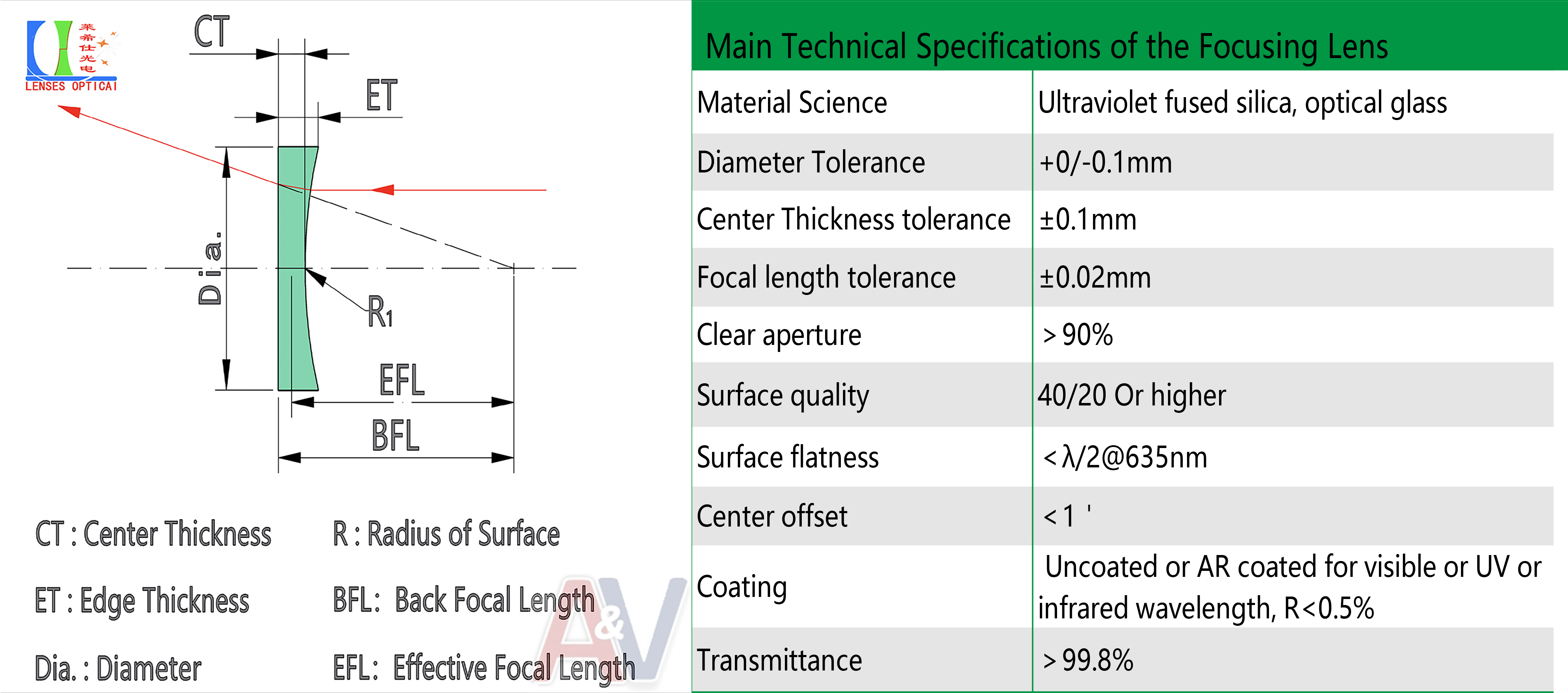

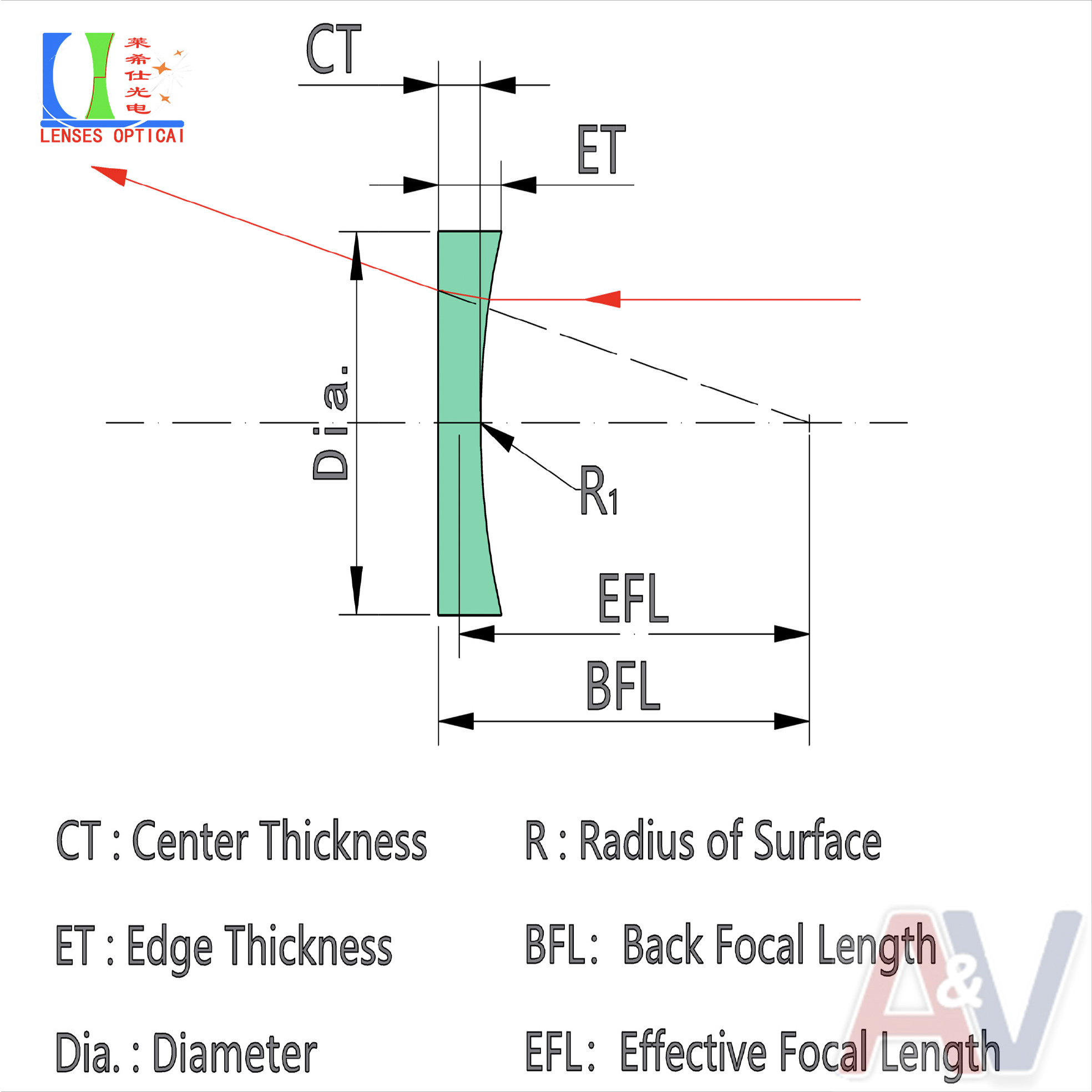

| Specifications | Diameter | Focal length | Center Thickness | Material |
| (Dia.) | (EFL) | (CT） | ||
| D18 F75 | 18 | 50 | 3.2 | BK7; quartz; sapphire; kinds of optical glass |
| D20 F100 | 20 | 100 | 3.5 | |
| D25 F125 | 25 | 125 | 3.6 | |
| D25 F200 | 200 | 3 | ||
| D25.4 F100 | 25.4 | 100 | 3.6 | |
| D25.4 F35 | 150 | 3.5 | ||
| D25.4 F40 | 125 | 3.6 | ||
| D28 F135 | 28 | 135 | 4.2 | |
| D28 F63 | 63 | 6 | ||
| D28 F125 | 125 | 5 | ||
| D28 F150 | 150 | 5 | ||
| D28 F200 | 200 | 4.5 | ||
| D34 F125 | 34 | 125 | 5 | |
| D30 F120 | 30 | 120 | 4 | |
| D30 F75 | 75 | 3.5 | ||
| D37 F62 | 37 | 620 | 5 | |
| We will customize according to the technical specifications provided by the customer. | ||||
| Key Highlights | |
| Precision Focus: | Technical advantages align with industry-specific demands (e.g., LiDAR, ultrafast lasers). |
| Flexibility: | Tailored solutions for complex optical requirements. |
| Reliability: | Certified production ensures consistency and durability. |
Optimized for performance, engineered for precision – empowering next-generation laser technologies.
