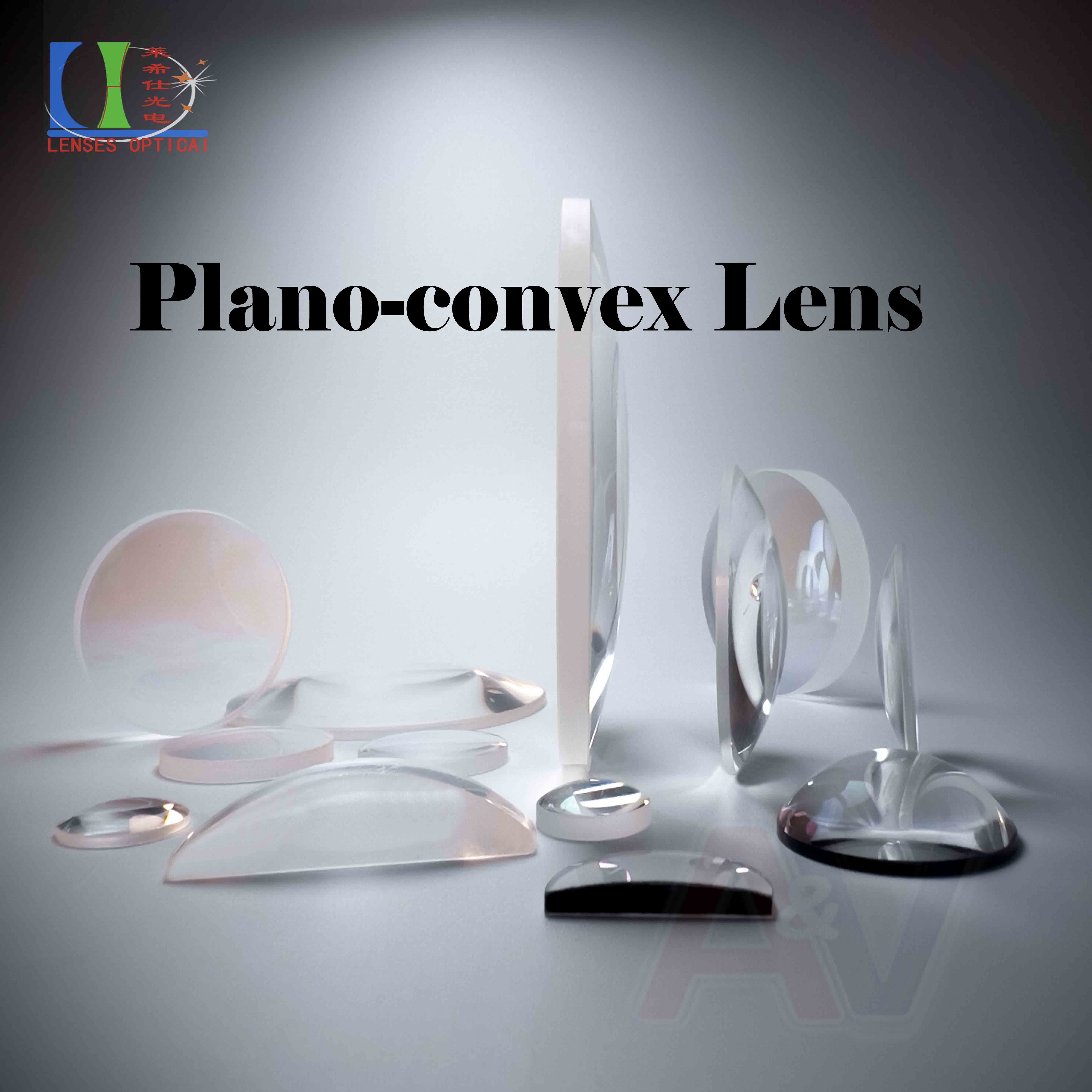

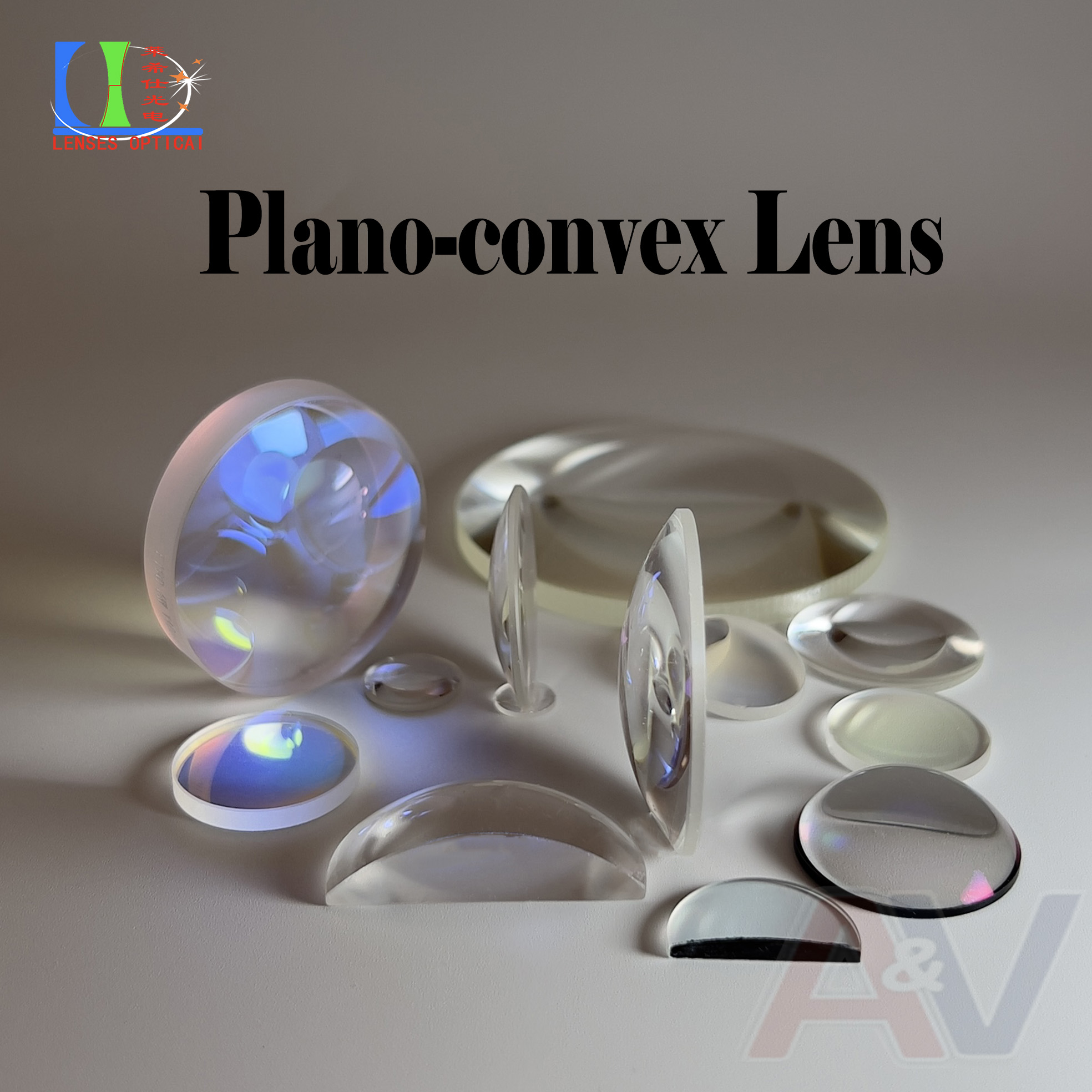

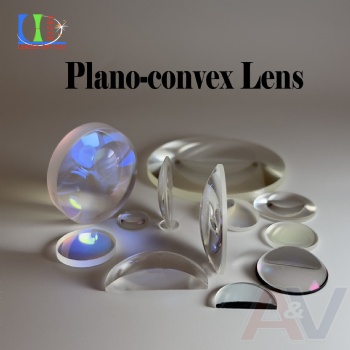

Plano-convex Lens

   Applications in Laser Technology

           ✅ Industrial Processing

           Laser cutting/welding:  Focus beams to micron-level spots for enhanced energy density and precision.

           ✅ Beam Collimation

           Laser communication/sensing:  Control divergence angle to ensure stable long-distance transmission.

           ✅ Scientific Research

           Optical tweezers, spectral analysis: Build precise optical paths for lab-grade systems.

           ✅ Medical Devices

           Ophthalmic surgery lasers: Accurate spot size control for safe and effective treatments.

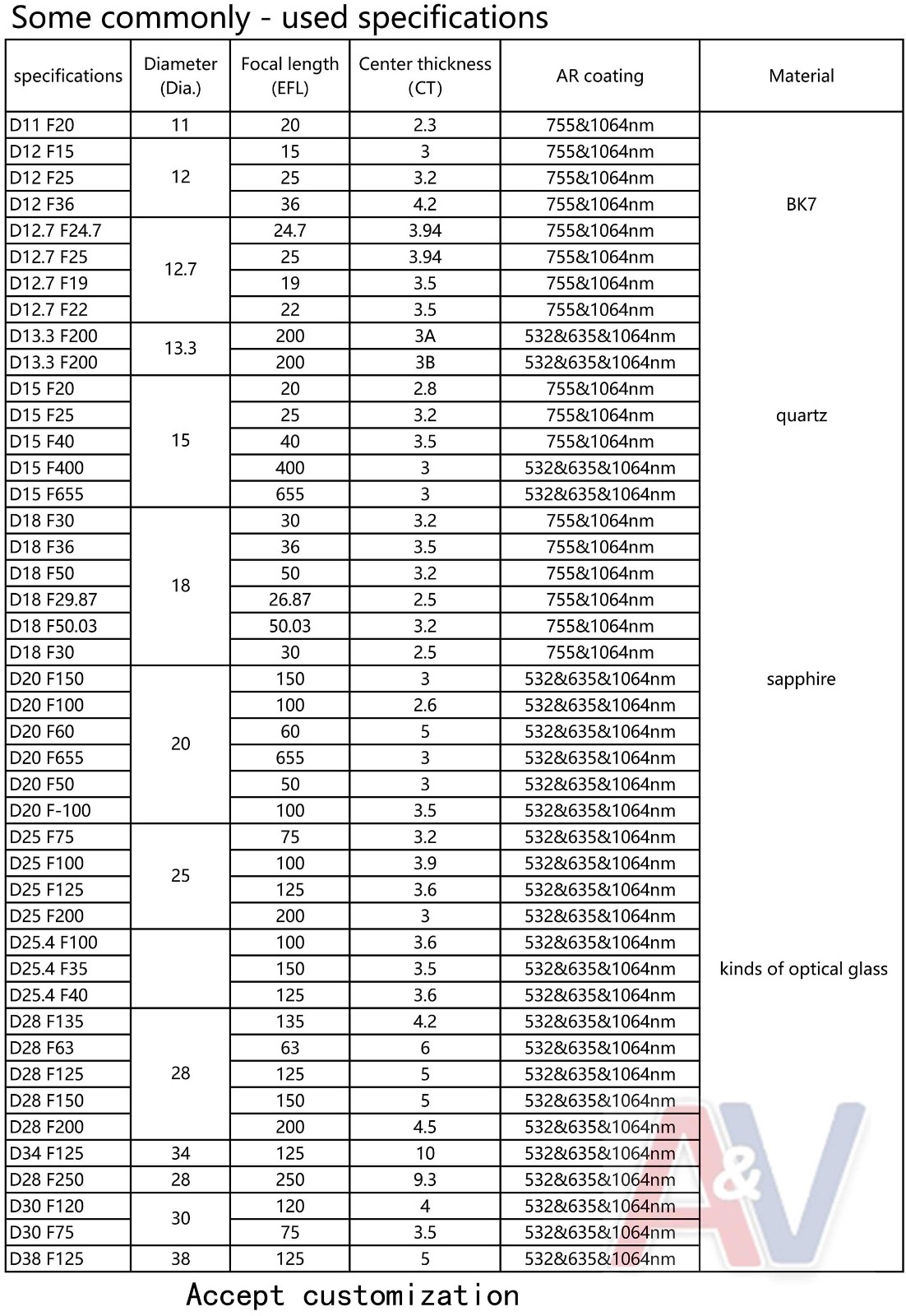

        Technical Specifications

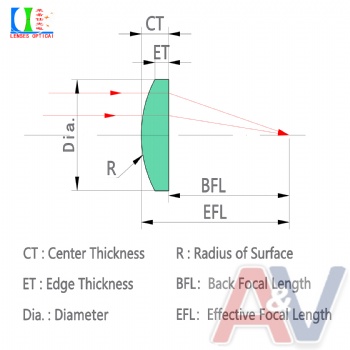

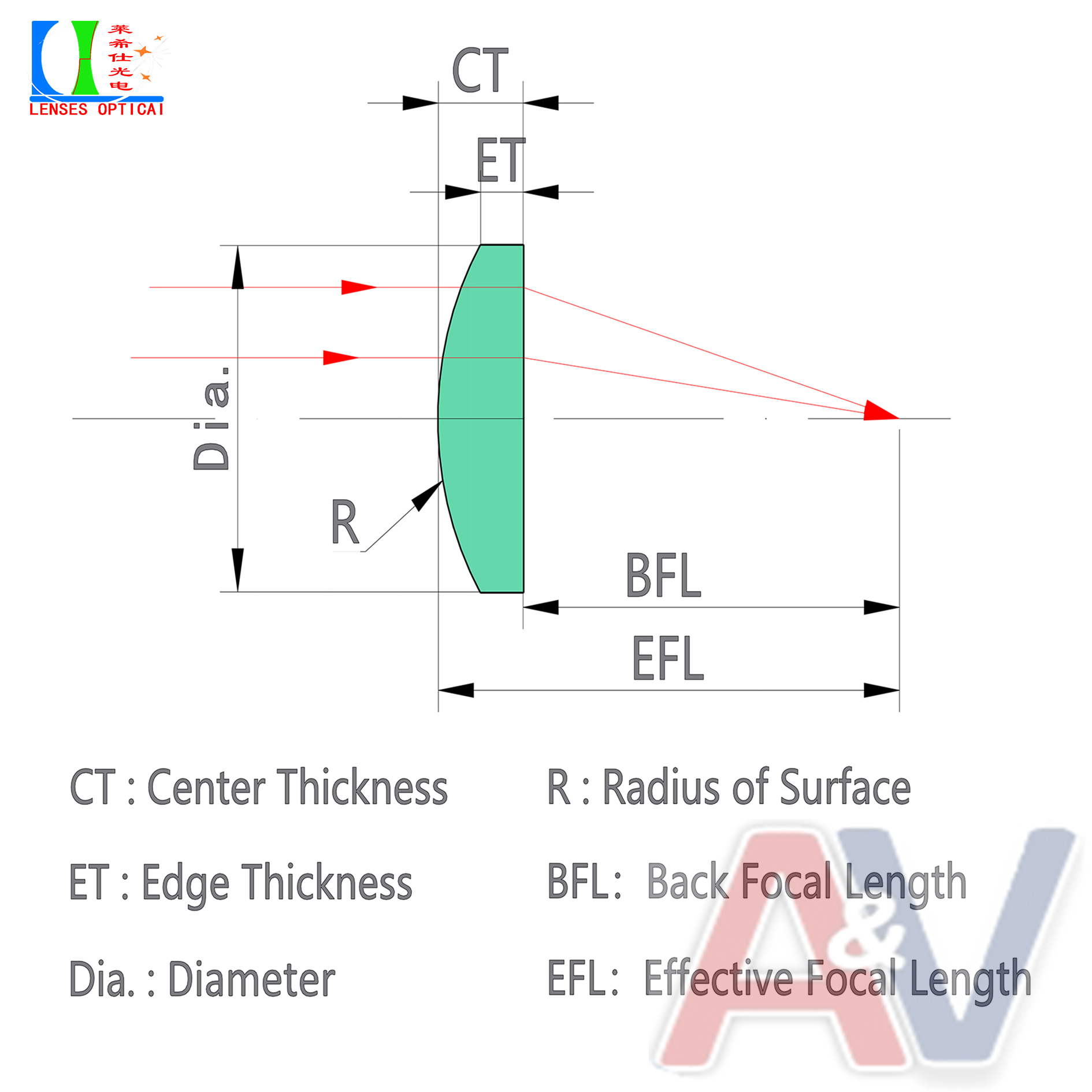

             Plane convex lens structure

    Material Science                  BK7, quartz, sapphire, kinds of optical glass

    Focal length error                ±1%

    Diameter tolerance              +0/-0.05mm

    Central thickness                 ±0.05mm

    Center deviation                  2’

    Surface quality                      40/20 or higher

    Coating Options                   AR coating, HR coating or customized

    Clear aperture                      90%

    Focal Length                        10 mm – 1000 mm (customizable)

    Diameter                              5 mm – 200 mm

          Why Choose A&V Sinosourcing(Yangzhou)Co.,Ltd. Plano-Convex Lenses?

           • Rigorous Quality Control: Ultra-precision polishing with surface accuracy <λ/4@632.8 nm.

           • Custom Solutions: Supports non-standard sizes, coatings, and materials for specialized needs.

           • End-to-End Service: One-stop technical support from optical design to system integration.

          A&V Sinosourcing(Yangzhou)Co.,Ltd. – Driving Industrial Innovation with Optical Technology

                                                Contact Us Now → Download Full Specifications & Customization Support
                          Industries: Industrial Manufacturing | Medical Equipment | Scientific Instruments | Optoelectronic Sensing
